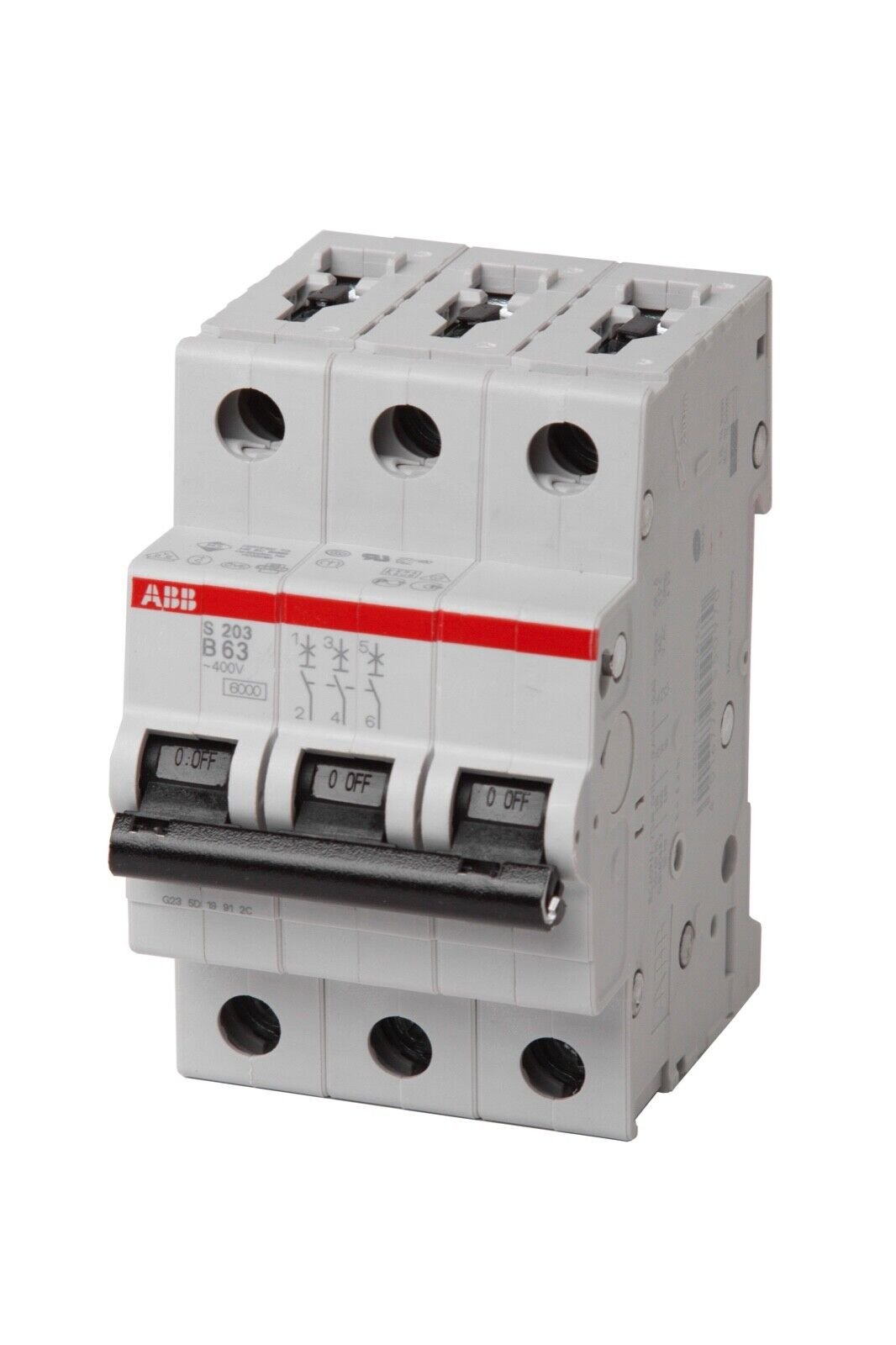

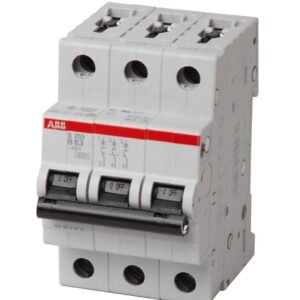

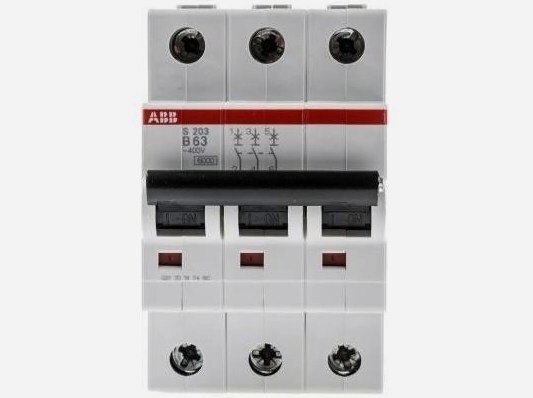

ABB Sicherungsautomat S203-B63 S200 3P B 63 A
Ursprünglicher Preis war: 135,00 €79,99 €Aktueller Preis ist: 79,99 €.
The S 200 series circuit breakers protect cables and lines against overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 and IEC/EN 60898-1, DIN VDE 0660-101 and IEC/EN60947-2, and UL1077. Their patented connection terminal ensures simple and safe contact and handling using a pressure plate. For better visibility during wiring, the connection opening for cables is located above the connection opening for the phase busbar. Conductor cross-sections of up to 35 mm² can be connected directly to the device via the connection terminal with IP20 insulation. The extensive range of accessories offers you everything you need for your installation tasks. Numerous approvals make the S 200 suitable for worldwide use. Each device undergoes three intensive tests for quality and performance before delivery.
1 vorrätig
General information
| Manufacturer | ABB |
| Manufacturer code | 2CDS253001R0635 |
| EAN number | 4016779550970 |
| Product type | Miniature circuit breaker |
| Description | Circuit breaker – S200 – 3P – 63 A – B |
Technical information
| Trigger characteristics | B |
| Rated operating voltage | (according to IEC 60898-1) 400 V AC
(according to IEC 60898-1) 400 V (according to IEC 60947-2) 440 V AC |
| Operating voltage | (Maximum including tolerance) 440 V AC
(Minimum) 12 V AC (Minimum) 12 V DC |
| Rated insulation voltage (U i ) | (according to IEC / EN 60664-1) 440 V |
| Rated impulse withstand voltage (U imp ) | 4 kV
at 2000 m 5 kV at sea level 6.2 kV |
| Insulation test voltage | 50/60 Hz-1 min: 2 kV |
| Input voltage type | AC/DC |
| Rated current (I n ) | 63 A |
| Rated switching capacity | (AC) 6 kA
(DC) 6 kA (400 V AC) 6 kA (400 V) 6 kA |
| Rated ultimate short-circuit breaking capacity (I cu ) | (230 V AC) 20 kA
(400 V AC) 10 kA (440 V AC) 10 kA (230 V) 20 kA (400 V) 10 kA |
| Rated conditional short-circuit current (I nc ) | (230 V) 20 kA
(400 V) 20 kA |
| Rated breaking capacity Im, rated fault breaking capacity IΔm (I cs ) | (230 V AC) 15 kA
(400 V AC) 7.5 kA (440 V AC) 7.5 kA |
| Frequency ( f ) | 50 Hz |
| Rated frequency (f) | 50 / 60 Hz |
| Power loss | 14.4 W
at rated conditions per pole 4.8 W |
| Feed-in | Any |
| Switch position indicator | Red ON / Green OFF |
| Energy limitation class | 3 |
| Electrical life | 10000 AC cycles |
| Mechanical resilience | 20,000 cycles |
| Number of protected poles | 3 |
| Number of poles | 3P |
| Overvoltage category | III |
| Tightening torque | 2.8 N·m |
| Mounting type | DIN rail |
| Type screw terminal | fail-safe, bidirectional cylinder lift connection |
| Control panel labeling | I/O |
| Shift handle material | Insulating material group II, black, sealable |
| Housing material | Insulating material group II, RAL 7035 |
| Mounting on DIN rail | TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 |
| Installation position | any |
| Recommended screwdriver | No. 2 Pozidriv |
| Accessories can be attached | Yes |
| Connection option | Busbar 10 / 10 mm²
flexible with wire end ferrule 0.75 … 25 mm² flexible 0.75 … 25 mm² rigid 0.75 … 35 mm² rigid 0.75 … 35 mm² stranded 0.75 … 35 mm² |
| Plant size | (according to DIN 43880) 1 |
| Stripping length | 12.5 mm |
| Connection type | screw terminal |
| Ambient temperature | (operation) -25 … +55 °C
(Storage) -40 … +70 °C |
| Protection class | IP20
IP40 installed in the distributor with cover IP40 |
| Gewicht | 0,4 kg |
|---|---|
| Größe | 5,8 × 9,2 × 8 cm |
